مجموعة مولدات ديزل بيركنز
Created with Pixso.

320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type

320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type

الاسم التجاري: MBKL
رقم الطراز: MB-320
الـ MOQ: 1 مجموعة
السعر: USD$210000-USD$268000
شروط الدفع: L/C ، T/T ،
القدرة على التوريد: 200 مجموعة شهريًا
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
CE&ISO
العلامة التجارية للمحرك:
بيركنز 2206C-E13TAG3
المولد:
MBKL ، ليروي سومر ، ستامفورد
لوحة التحكم:
Smartgen ، أعماق البحر
القوة المقدرة:
320 كيلو واط / 400 كيلو فولت أمبير
مرحلة:
AC مرحلة واحدة / AC ثلاث مراحل
تكرار:
50 هرتز/60 هرتز
الجهد المقنن:
230V / 400V
سرعة:
1500 دورة في الدقيقة/1800 دورة في الدقيقة
تصنيف التيار:
576 أ
يكتب:
افتح النوع / النوع الصامت
ضمان:
12 شهر / 1000 ساعة
وقود:
ديزل
ATS:
خياري
تفاصيل التغليف:
البلاستيك ملفوفة على حاملو البوليوود كمتطلبات المستهلك. تتوفر LCL و 20 قدم و 40 قدم.
القدرة على العرض:
200 مجموعة شهريًا
وصف المنتج

Brand New 320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type



Perkins diesel engine advantage



1. Original Perkins diesel engine model :2206C-E13TAG3
2. Comfortable, lower vibration and noise.
3.
The emission requirements o fnon-road diesel engines have been meet , and some products hanveachieved
the U.S.EPA, EuropeE-mark, india CPCB and other emission standars.



Diesel generator specification as below:

Genset

Model

 MB-320

Output Power

320KW/400KVA

Power Factor

COSΦ=0.8(lagging)

Maximum Output Current

576A

Weight

4280KG

Silent Genset Dimensions

4350×1400×2260mm

Voltage

400/230

Frequency

50Hz

  Diesel Engine

Manufacturer

Perkins

Model

2206C-E13TAG3

Rotate Speed

1500RPM

Power

 349KW

Fuel Consumption

206g/kw.h

Lube Oil Capacity

 40L

Cylinder/Stroke

130/157mm

Compression Ratio

16.3:1

Gas Displacement

12.5L

Cooling Liquid Capacity

51.4L

Configuration

6 in line ,four-stroke, Turbocharged, Charge Air Cooled

Cooling Mode

Closed circuit water cooling

Speed Control System

Electronic Govenor

Starting Mode

24V DC

Filter System

Dry air filter, fuel filter, oil filter

  Alternator

Manufacturer

Wuxi Stanford Intelligent Technology Co.Ltd

Model

S6L1D-G41

Voltage Control Mode

AVR (automatic voltage regulation)

Voltage Regulation

±1%

Rated Voltage/Frequency/Power Factors

400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire

Steady State Frequency

Better than 5%

No-load Voltage Adjust Range

≥95% - 105%

Insulation Class/Protection Class

H / IP22

Excitation Type

Brushless

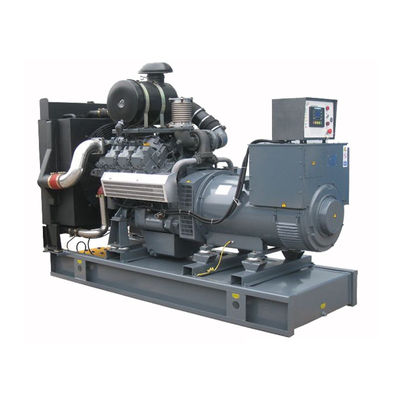

Pictures for reference only as below:


320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type 0320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type 1320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type 2


320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type 3


Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



About Mingbang company:



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!


320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type 4320KW/400KVA Diesel Generator set with Perkins Engine 2206C-E13TAG3 Power Solution Power Generation Open/Silent type 5



RFQ


1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
