| الاسم التجاري: | Likaduo engine |
| رقم الطراز: | MB-40 |
| الـ MOQ: | 1 قطعة |
| السعر: | Price:Negotiable |
| شروط الدفع: | Western Union ، T/T ، D/P ، L/C. |
| القدرة على التوريد: | 200pcs/شهر |

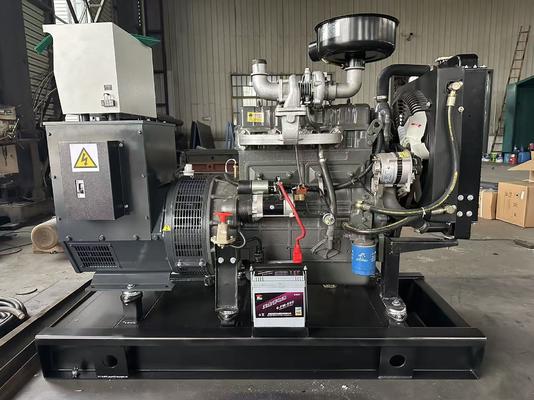

High-quality power generator with reliable performance and easy maintenance.
Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.
| Model | MB-40 |
|---|---|
| Output Power | 40KW / 50KVA |
| Power Factor | COSΦ=0.8 (lagging) |
| Maximum Output Current | 72 A |
| Weight | 700KG |
| Dimensions | 1700*580*1250mm |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Manufacturer | Likaduo Diesel Engine |
|---|---|
| Model | LKD40 |
| Rotate Speed | 1500RPM |
| Power | 56KW |
| Fuel Consumption | ≤258g/kw.h |
| Cylinder/Stroke | 100/115mm |
| Compression Ratio | 19:1 |
| Displacement | 3.61L |
| Configuration | 4-cylinder in-line, four-stroke, water-to-air cooling |
| Cooling Mode | Liquid Cooled |
| Speed Control System | Electronic |
| Starting Mode | 24V DC |
| Filter System | Dry air filter, fuel filter, oil filter |
| Manufacturer | Changsha Mingbang Intelligent Technology Co.Ltd |
|---|---|
| Model | MBC22B |
| Voltage Control Mode | AVR (automatic voltage regulation) |
| Voltage Regulation | ±1% |
| Rated Voltage/Frequency/Power Factors | 400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire |
| Steady State Frequency | Better than 5% |
| No-load Voltage Adjust Range | ≥95% - 105% |
| Insulation Class/Protection Class | H / IP22 |
| Excitation Type | Brushless |
Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins, with over 80 years of experience, is a world-leading supplier of diesel and gas engines in the 4 - 1800 kW market. Their key strength lies in customizing engines to precisely meet customer requirements, making their solutions trusted by over 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and power generation markets.
Our factory partners with world-renowned engine manufacturers including CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, and Jichai. With over 20 years of specialization in synchronous 100% copper wire alternators, our MB brand alternators have gained global recognition. Our generator power range spans from 6.5KW to 2000KW.
